Higher Temperature Wall Mounted Cabinet Air Conditioner

Unit Price: USD 700.0000 - 790.0000 / Set/Sets
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,CPT
Min. Order: 10 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: DKC32

Type: Cabinet Air Conditioner

Capacity: 9000 BTU

Usage: Room

Indoor Machine Noise: >50dB

Certification: CCC, RoHS, MEPS, CE

China Energy Efficiency Standard: Level 3

Cooling/Heating: Cooling Only

Power Source: Electrical

Power Type: AC

Condition: New

Temperature Control Range: 20℃ To 55℃

Ambient Temperature: -5℃ To 20℃

Refrigerant Gas: R22

Power Supply: 1PH,220V/50HZ/60HZ(Aviable:110V~400V)

Cooling Capacity: 3200BTU/10918BTU

Net Dim. (L X W X H): 1070*421*200MM

Rated Current Input: 6.8A

Power Consumption: 1496W

IP Level: Internal:IP34, External:IP55

Weight: 64KG

Additional Info

Packaging: Wood Box

Productivity: 500sets/Month

Brand: TENTCOOL

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 20sets/day

Certificate: ISO9001, ISO14001

HS Code: 8415812001

Port: Shanghai,Taizhou,Any Port of China

Product Description


The Indoor Electr Cabinet Air Conditioner integrated machine cabinet air conditioning which is controlled by the internal temperature control of the internal temperature of the cabinet through vapor compressor refrigeration, Electr Cabinet Air Conditioner can be installed on the side board or door plated of industrial cabinet.Indoor Cabinet Air Conditioner provide the ideal temperature and humidity environment within the cabinet. The Cabinet ELectr Air Conditioner is highly automatic, safe and reliable, and energy-saving.

Product description

Cabinet air conditioner is actively cooling with compressor, and it will remove the heat from inside of cabinet to outside. It also can keep the dust and heat outside the cabinet, avoiding problems from using fan. The inside cabinet can be maintained at an ideal temperature for electrical components which effectively guarantees the stability of the electronic equipment and improves the reliability of the whole system. The products can be widely used for outdoor communication cabinets, battery cabinets, electric cabinets, industry control cabinets etc.

The cabinet air conditioning refrigerates the air through inside and outside

two independences, and exchanges the heat inside the cabinet to the outside by the heat-exchanger. By this way, it can protect the electricity wind chest's electrical element in the controllable temperature range movement. Simultaneously the cabinet air conditioning has dehumidifies the function, which will guaranteed the cabinet interior has the ideal temperature and the humidity.

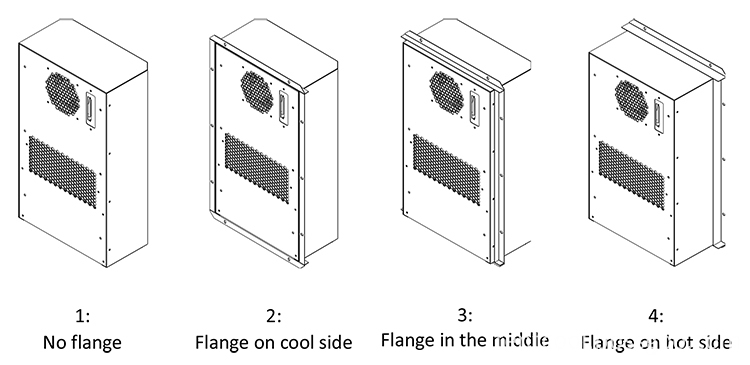

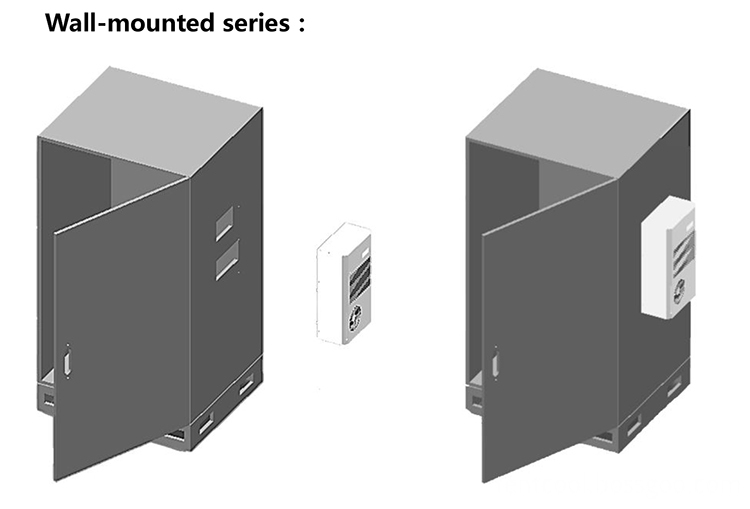

Cabinet air conditioner installation way

cabinet ac Schematic of Installation2

Model list

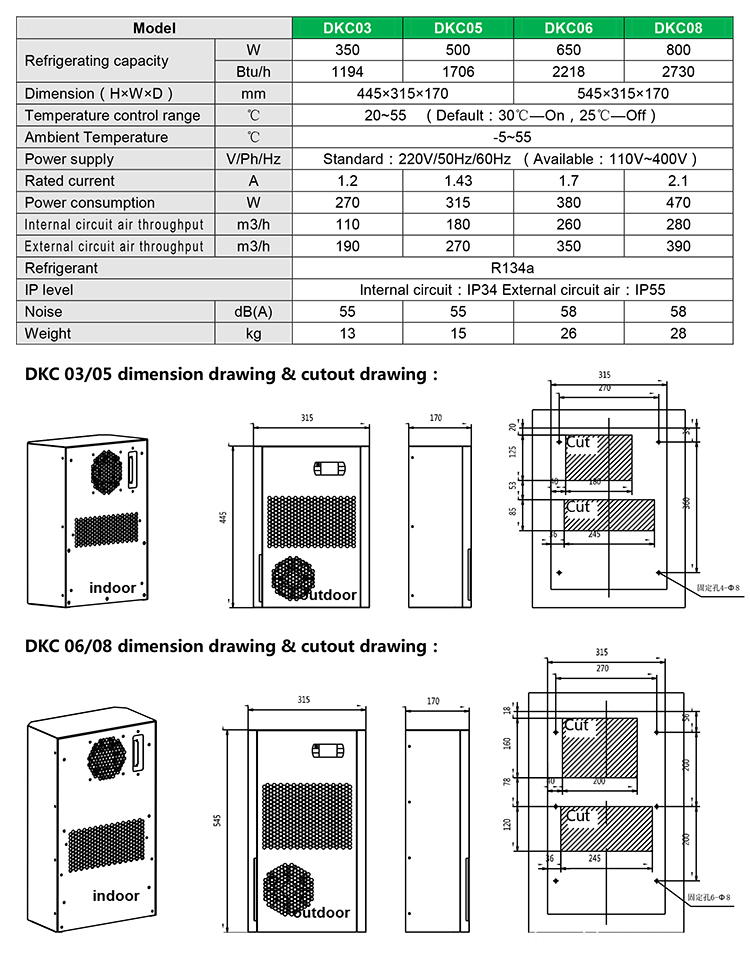

Cabinet air conditioner DKC03-08

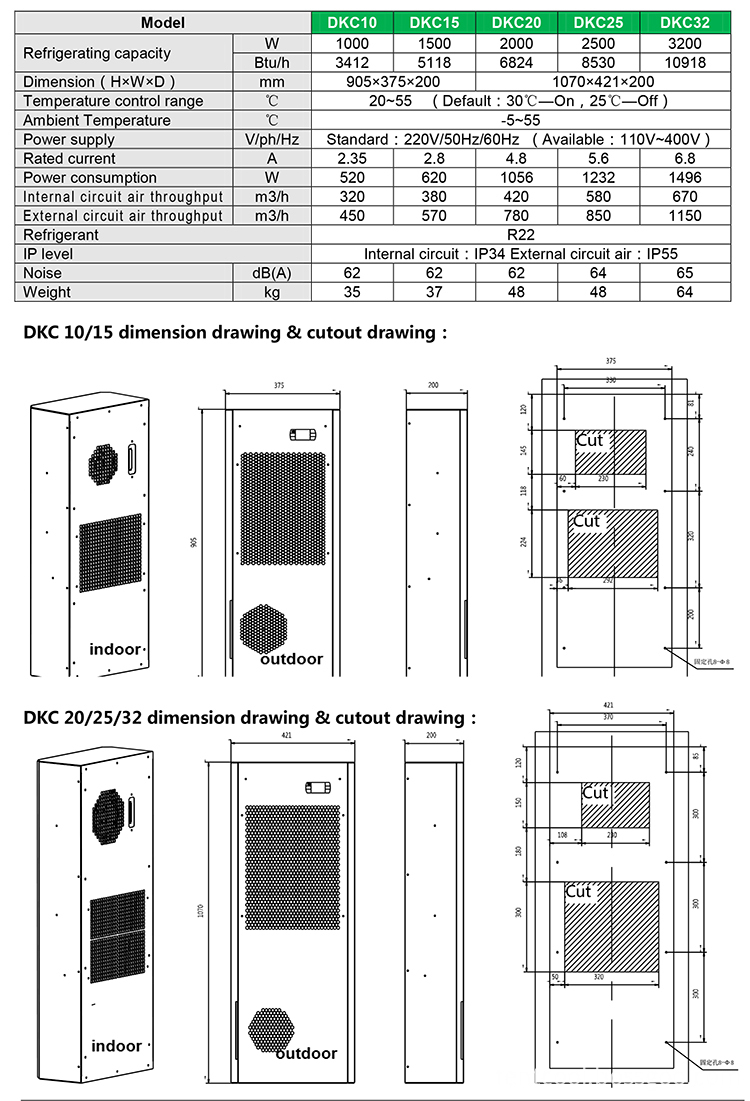

Cabinet air conditioner DKC10-32

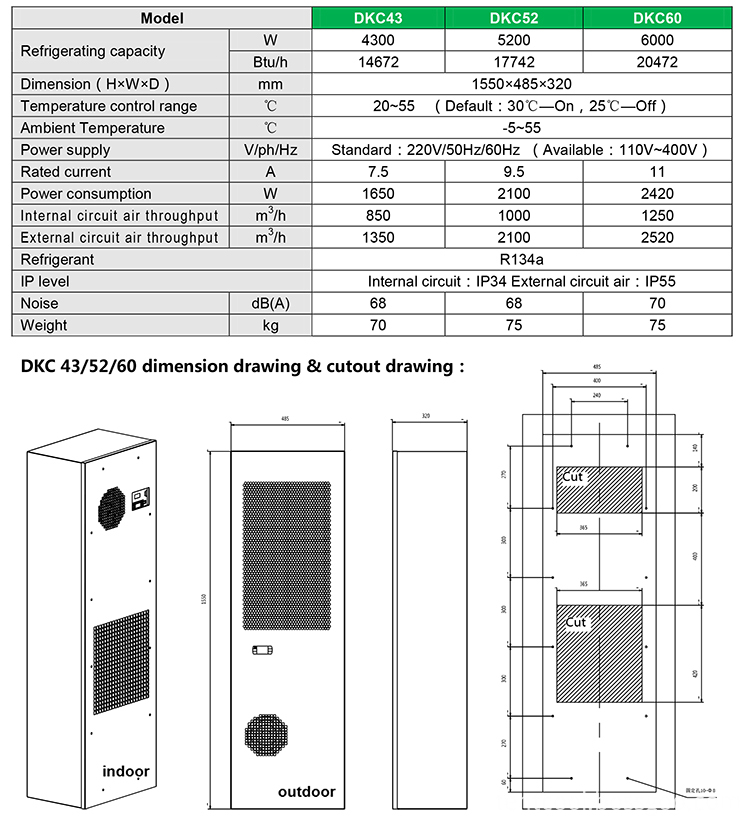

Cabinet air conditioner DKC43-60

cabinet air conditioner (4)

Tentcool (1)

Tentcool (2)

Tentcool (3)
