Pre Flight Air Conditioner for Air Craft Parking

Unit Price: USD 7300.0000 - 7500.0000 / Set/Sets

Basic Info

Model No.: TTAC-40HCWaS

Applicable industry: Manufacturing Plant, Machinery Repair Shops, Construction works, Energy & Mining, Food & Beverage Factory

Out-of-warranty service: Online support, Spare parts, Video technical support

Where to provide local services (in which countries are there overseas service outlets): Germany, Romania

Showroom location (in which countries are there sample rooms overseas): Germany, Romania

status: New

species: Other

place of origin: China

warranty period: 2 years

Core selling point: Competitive Price, Low Maintenance Cost, Easy to Operate, High Safety Level

airflow: 5000m³/h

Marketing type: Ordinary Product

Mechanical test report: Provided

Video factory inspection: Provided

Core component warranty period: 2 years

Core components: Engine, Motor

Type: Central Air Conditioners

Capacity: 48000-60000 BTU

Usage: Room

Indoor Machine Noise: 24-35dB

Certification: CE

China Energy Efficiency Standard: Level 3

Cooling/Heating: Cooling/Heating

Power Source: Electrical

Power Type: AC

Condition: New

Cooling Temp Range: 20℃ To 55℃

Heat Pump Tep Range: -10℃ To 20℃

Electricity Heat Range: -45℃ To 20℃

Refrigerant Gas: R410a/12.0Kg

Power Supply: 3PH,350V/50HZ

Cooling Capacity: 40kw

Heating Capacity: 40kw

Compressor Model No.: Panasonic

Net Dim. (L X W X H): 2135*1210*1230

Additional Info

Packaging: Wood Box

Productivity: 500sets/Month

Brand: TENTCOOL

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 20sets/day

Certificate: ISO9001, ISO14001

HS Code: 8415812001

Port: Shanghai,Taizhou,Any Port of China

Product Description

The Pre Flight Air Conditioner for Air Craft Parking unit adopts branded components and intelligent control system. The Pre-Conditioned Air Unit is highly automatic, safe and reliable, and energy-saving. The Air Conditioner for Pre-flight providing ventilation, cooling, dehumidification and heating and filtered air to aircraft, the Pre-Flight Cooling System can create comfortable cabin environment for passengers and crew members during pre-flight, post-flight or maintenance.

①.   All fresh air, all electric power drive and direct evaporation refrigerating technology, all-weather operation for the whole year.

②.   Integral design, structural style includes bridge mounted, apron mounted and mobile mounted style.

③.   Multi-stage refrigeration system design meets requirements of low temperature and stable volume.

④.   Low noise and high pressure centrifugal fan meet requirements of low noise and high static pressure.

⑤.  Variable frequency technology, air volume and static pressure adjustable and suitable for various needs of different types of air crafts and requirements of electric energy saving.

⑥.   Multi-safety protection function, high reliability.

⑦.   Air-supply ramp time synchronization for cooling or heating control under extreme environment, preventing hot air when cooling or cold air when heating, and making more comfortable cabin environment.

⑧.   Remote monitoring function, providing remote inspection on unit operation via network, and maintenance advice.

⑨.   Optional accessories: air hose, hose basket and aircraft connector, easy operation


Product Display LG

Air Craft Parking Air Conditioner

Air Conditioner for Pre-flight

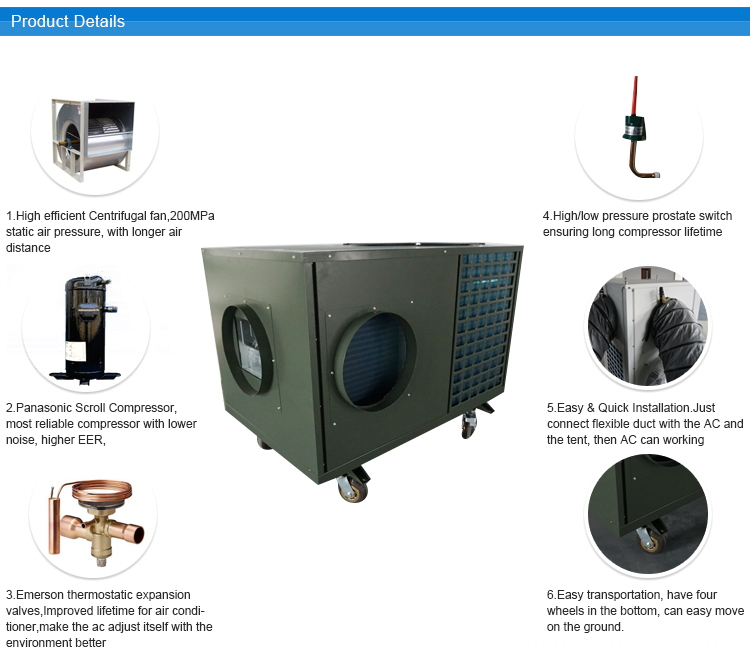

Product Features

• Easy installing, just connect the flexible duct to the ac and the tent,then connect the power, then tent air conditioner can start to work;

• Quick installing, one person just one minute can finish the install.

•The AC is built into a cabinet manufactured from 1mm galvanized and powder coated steel sheet;

•Top finish painting is standard Olive green, also painting according customer needs;

•Can provide cooling at ambient temperature up to +55℃, provide heating at ambient temperature at -10℃;

• Environment-friendly R410a refrigerant gas;

• High/low pressure prostate switch ensuring long compressor lifetime;

• Emerson or Danfoss expansion valve can make the ac adjust itself with the environment better;

• Connect to the mains power supply or a separate diesel generator through a 7.5 m power cable;

• Temperature control by a room thermostat placed inside the tent;

• Inlet and discharge openings for one Ø380 mm insulated flexible hose, thus allowing the air conditioning unit itself to be set up outside;

• Easy transportation, have four wheels in the bottom, can easy move on the ground.

Tent air conditioner use for

Tent air conditioner cooling

       Military Tent Air Conditioner for Hungary Military                Mobile Cooling and Heating for UAE UN Peace Keeping Force

Field Medical Air Conditioner 1

    China Guizhou Field Hospital air conditioner                China Fujian Province Field Medical Rescue Team


Sleeping Cabin Air Conditioner 1

      Fire Fighter Sleeping Cabin Air Conditioner                     Fire Fighting Camp Cabin Air Conditioner

Airplane parking Air Conditioner

      Airplane Parking Air Conditioner                            Aircraft Ground Service & Maintenance Air Conditioner

Tent air conditioner install

Tentcool Company show

TENTCOOL is a diversified, high-tech and internationalized modern company focusing on energy efficient climate control solutions within cooling, heating and dehumidifying. The key products include Mobile Cooling & Heating Air Conditioners, Cabinet Air Conditioners and other air conditioning units for speical use or with customized design.

TENTCOOL endeavors to offer market-demand products, develop existing and new customer relations. The products are specially designed and supplied to military and humanitarian organizations, as well as special apartments or spaces like temporary buildings, accommodation, military camps, relief camps, tents, work camps (oil and gas industry), etc. TENTCOOL warmly welcome the world interested partners working together to making contributions on special climate control demands.

Tentcool Company show a
